uAIFI Empowered 1.5T MR
uMR® 680
The uMR®680 was designed with a high performance system: outstanding gradient performance of 45 mT/m & 200 T/m/s and excellent magnetic field homogeneity with a 70cm wide bore, expanding your capabilities in the field of clinical applications and research. Empowered by uAIFI Technology, the uMR®680 delivers '3.0T-like' image quality and achieves a new standard in workflow and patient care.
45 mT/m & 200 T/m/s
High Performance Gradient System
Facilitates clinical applications and research
uAIFI DeepRecon: Provides 1.5T System with '3.0T-like' Image Sharpness
Simultaneously improves SNR and image sharpness
uAIFI EasySense: Contactless Sensing of Patients' Respiratory Motions
Streamlines the workflow and provides more comfort
Intelligent Examination Platform
The uAIFI Technology includes a series of innovations: EasySense, the industry's first remote dual-source phased array millimeter-wave contactless respiratory motion sensing technology; DeepRecon, a deep learning (DL) based image reconstruction technique technology; as well as QScan, a quiet scanning technology for whole body.
The uAIFI Technology will provide the uMR® 680 with significant performance enhancements, more powerful imaging capabilities, better workflow, and improved user experience.
Intelligent Examination Platform
Automatic table positioning with ONE-click.
EasyPlan
Automatic multi-step scan planning with ONE-click.
EasyScan
Intelligent, automatic, and consistent anatomical orientation.
High Speed Imaging
Powerful Gradient Performance
The remarkable 45 mT/m & 200 T/m/s (simultaneous on each axis) unlock higher signal-to-noise ratio (SNR) for neuro and cardiac imaging.
High-Density RF Channels
Enable the full use of high-density surface coil arrays, thus significantly improving image quality.
uAIFI DeepRecon
Deep learning (DL) based image reconstruction technology, simultaneously improving SNR and image sharpness.
Intelligent Noise Reduction
Intelligently removes noise from images while maintaining excellent diagnostic image quality.
High Fidelity
A double safety lock design in both image domain and K-space domain for high-reliability results.
Improved Image Sharpness
Delivers high-resolution anatomical structure with sharper anatomical structure.
Broad Field-of-View
Applicable for multi-bed scanning such as whole spine and whole-body imaging.
Simultaneously Improves SNR and Image Sharpness
Shoulder PDW FS
Conventional (2:56 min) vs. uAIFI DeepRecon™ (2:56 min)
0.29×0.29×3 mm3
Knee PDW FS
Conventional (2:32 min) vs. uAIFI DeepRecon™ (2:32 min)
0.35×0.35×3 mm3
Spine T2W STIR
Conventional (2:56 min) vs. uAIFI DeepRecon™ (2:56 min)
0.29×0.29×3 mm3
Cardiac T2W DB SPAIR
Conventional (9.4 sec) vs. uAIFI DeepRecon™ (9.4 sec)
0.78×0.78×4 mm3

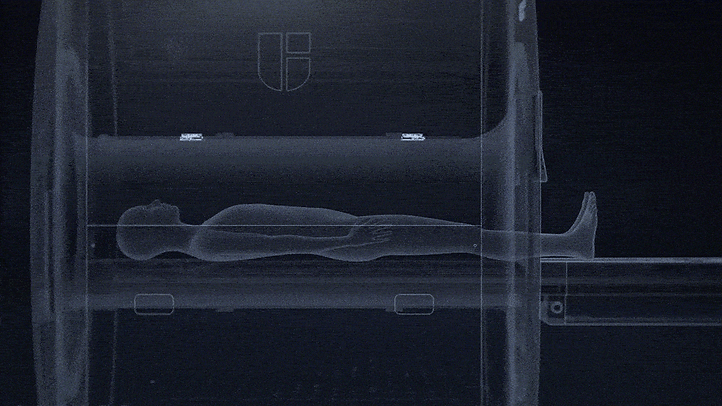

uAIFI EasySense
Industry's first dual-source phased-array millimeter-wave radar solution for contactless sensing of patients' respiratory motions.
Streamlined Workflow
No need for technologists to attach a respiratory belt to patients.
Dual-Souce Millimeter-Wave Radar
Fully integrated within the MRI bore and unobstructed by clothing or MRI RF coils.
Better Patient Comfort
Contactless sensing for free breathing, better for patients with respiratory challenges.
Outstanding Stability and Accuracy
0.1mm detection accuracy of breathing motion with a temporal resolution up to 20ms.
